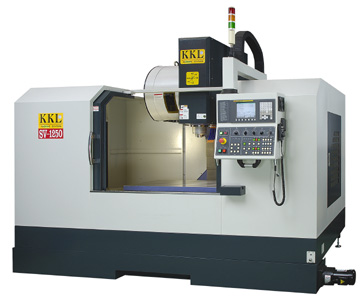

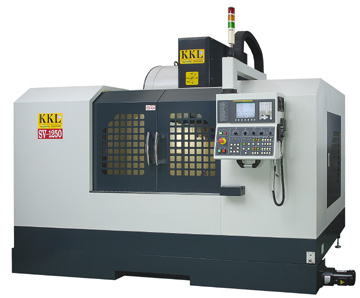

CNC Vertical Machining Center SV-1250
dot *Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.
*Inverted-Y Column to extend support distance.




                       SPECIFICATIONS

Model
-
Unit
SV-1250
Table
Work Area
mm(inch)
1,320x600

T-slot
mm(inch)
5x18

Max. Loading
kg
1,200
Travel
X/Y/Z Travel
mm(inch)
1250/625/625
Distance
Spindle Center to Column Box Ways
mm(inch)
660

Spindle Nose to Worktable Surface
mm(inch)
120~745

Floor to table top
mm(inch)
900
Spindle
Taper
BT#
40 (50 optional)

Speed
rpm
65-8,000

Motor
kw(HP)
7.5/11kw (10/15HP)
11/15kw (OPT.)
Axis motor X Y Z
Cutting feedrate
mm/min
1-10,000

Rapid feedrate X/Y
mm/min
20,000

Rapid feedrate Z
mm/min
18,000
Ballscrew on 3 axis
Dia. X pitch(X.Y.Z axis)
mm(inch)
40 x p10
Automatic tool change
Type of ATC

Armless /Arm (OPT.)

no. of ATC (OPT.)
tools
24/30

Max. tool(dia. /length)
mm(inch)
90/150

Max. tool weight
kg
8

Max. tool length
mm(inch)
250
Accuracy
Positioning
mm(inch)
VDI 3441

Repeatablity
mm(inch)
VDI 3441
Miscellaneous
Machine net weight
kg
8,000

Power required
kva
25

Pneumatic required
kg/cm2
6
                                     Note:We reserve the right to modify the design and specifications without notice in advance.
                                                 FOUR BOX WAY DESIGN, RAPID SPEED MAX UP TO 24M/MIN.
                                                 WIDER SLECTION CNC CONTROLLERS: HEIDENHAIN / FANUC / SIEMENS / MITSUBISHI.


                         STANDARD ACCESSORIES                                              OPTIONAL ACCESSORIES
                         *Automatic lubrication system                                                   CE regulation
                         *Air blast through spindle                                                           Coolant through spindle (CTS)
                         *Spindle air purge system                                                           Adding 4th axis interface
                         *Screw type chip conveyor                                                        CNC rotary table
                         *Full splash guard                                                                       Spindle BT40-10,000/12,000/15,000 rpm
                         *Rigid tapping                                                                             Spindle  BT50-6,000/8,000/10,000 rpm
                         *Auto power off                                                                         Linear scale
                         *Heat exchanger in control box                                                   Oil mist unit
                         *Work lamp                                                                                Arm type ATC (24 tools, 30 tools)
                         *3 color light                                                                               Link type chip conveyor and bucket
                         *Tool box                                                                                    *ZF 2 speed gear box
                         *Armless (Umbrella)                                                                  Tool length measure mount
                         *20T Type ACT (20 Tools)                                                      Work piece measurement
                         *Leveling bolts & blocks                                                            Transformer
                         *Spindle oil cooler unit
                         *RS-232 interface
                         *Operational manual & electric drawing equipment
                        Remote manual pulse generator

                          KEY FEATURES

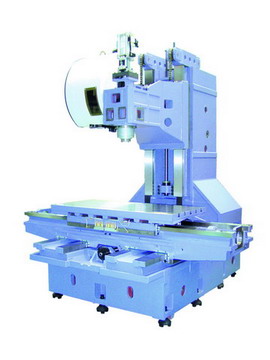

                         *More 20 percent of weight (total weight 8.2 tons) than other similar machining centers.
                         *30 percent of rigidity in the casting of machining center has been enhanced.
                         *Adopting German Standard VDI 3441 & Euroscale Machine Frame.
                         *Inverted-Y Column to extend support distance.
                         *Saddle structure passes through 4 axes.
                         *Super Four hard Boxways and A-shape box Base.
                         *Column is constructed in the form of  -shape to achieve strong rib.
