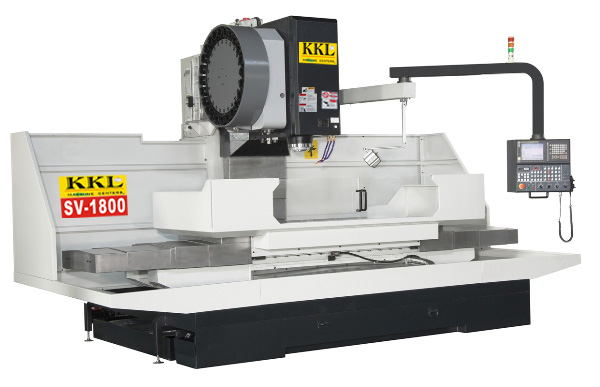

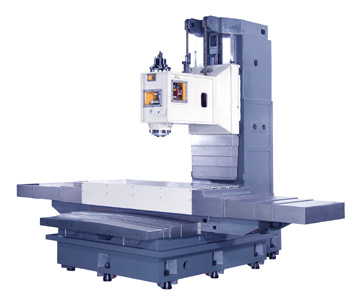

CNC Vertical Machining Center SV-1800
dot *Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.
*Large Support Distance to Column.






SPECIFICATIONS

Model

-

Unit

SV-1800

Travel

X-axis

mm (inch)

1800



Y-axis

mm (inch)

950



Z-axis

mm (inch)

750 (900)



Spindle nose to table

mm (inch)

200-950 (200-1100)



Spindle center to column

mm (inch)

1030

Table

Size

mm (inch)

1900 x 900



               Size of T-slot             (Width x Distance x No.)

                               mm x mm x no.

                                               18 x 150 x 6



Max loading capacity

kg

2500

Spindle

Speed

rpm

60-6000



Transmission

type

Gear



Motor

kw

15 (18.5)



Taper

type

BT50

Rapid feed rate X/Y/Z axis



m/min

15/15/12

Cutting feed rate



m/min

1-7

Automatic tool changer

ATC type

type

Armless (Arm)



Tool capacity

pc

24 (32)



Max. tool weight

kg

18



Max. tool length

mm (inch)

350



Max. tool diameter

mm (inch)

Æ125

Miscellaneous

Air source

kg/cm2

6



Machine height

mm (inch)

3255



Machine area (Length) x (Width)

mm (inch)

5000 x 3810



Machine weight

kg

16000



Positioning

mm (inch)

VDI 3441



Repeatability

mm (inch)

VDI 3441



Slideway

type

4 Boxways

                 Note:Symbol (  ) represents Optional Accessories.
                             Design and specification are subject to change prior notice.

      STANDARD ACCESSORIES                                      OPTIONAL ACCESSORIES
      *Armless type tool changer                                             Spindle automatic oiling device
      *Full splash guard                                                            Arm type tool changer
      *Spindle air blast system                                                  4th axis NC rotary table
      *Heat exchange in control box                                          Chip conveyor
      *Spindle BT40-6,000rpm                                                Spindle speed 8,000/10,000rpm
      *Working light                                                                  Direct couple spindle 10,000/12,000/15,000rpm
      *Coolant pump                                                                Built-in 16,000rpm
      *Operator indication lamp                                               Optical scale
      *Spindle arbor cleaning                                                    *Transformer
      *Tool box                                                                         PL waterproof fluorescent worklight
                                                                                                 *BED shower
