Model

-

Unit

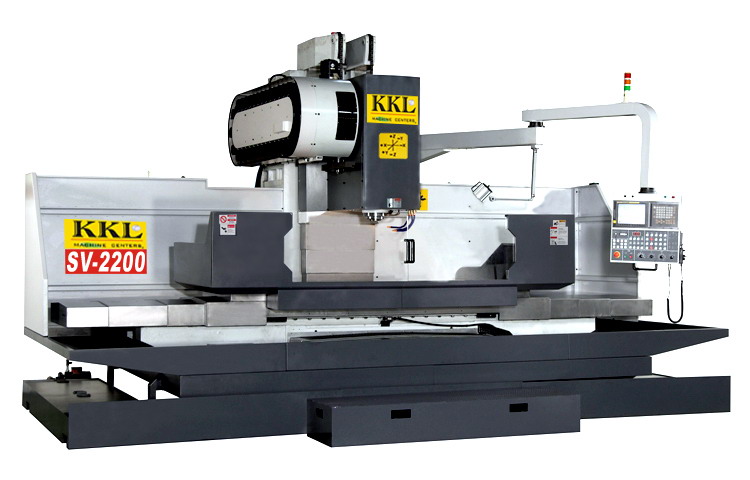

SV-2200

Travel

X-axis

mm (inch)

2200

Y-axis

mm (inch)

950 (1050)

Z-axis

mm (inch)

750 (900)

Spindle nose to table

mm (inch)

200-950 (200-1100)

Spindle center to column

mm (inch)

1030 (1150)

Table

Size

mm (inch)

2350 x 900

               Size of T-slot             (Width x Distance x No.)

                               mm x mm x no.

                                               18 (22) x 150 x 6

Max loading capacity

kg

3500

Spindle

Speed

rpm

60-4000 (60-6000)

Transmission

type

Gear

Motor

kw

18.5

Taper

type

BT50

Rapid feed rate X/Y/Z axis

m/min

15/15/12

Cutting feed rate

m/min

1-7

Automatic tool changer

ATC type

type

Armless (Arm)

Tool capacity

pc

24 (32)

Max. tool weight

kg

18

Max. tool length

mm (inch)

350

Max. tool diameter

mm (inch)

Æ125

Miscellaneous

Air source

kg/cm²

6

Machine height

mm (inch)

3165

Machine area (Length) x (Width)

mm (inch)

5850 x 3810

Machine weight

kg

19500 (21000)

Positioning

mm (inch)

VDI 3441

Repeatability

mm (inch)

VDI 3441

Slideway

type

4 Boxways + 2 Linear ways
