SPECIFICATIONS

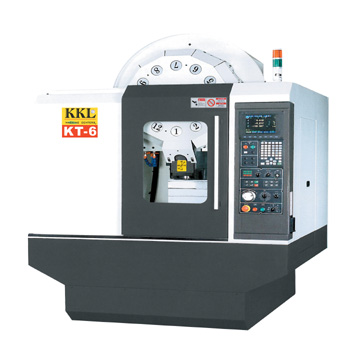

Model	-	Unit	KT-6
Travel	Controller	type	Mitsubishi 70M-2A
	X axis	mm (inch)	600
	Y axis	mm (inch)	400
	Z axis	mm (inch)	300
	Spindle nose to table	mm (inch)	200-500
	Spindle center to column	mm (inch)	440
	Rapid traverse X/Y/Z	m/min	48/48/48
Table	Size of T-slot                      (Width x Distance x No.)	mm x mm x no.	18 x 125 x 3
	Max loading capacity	kg	300
	Size	mm (inch)	700 x 420
Spindle	Taper	type	MAS-BT30
	Speed	rpm	Belt 10,000
	No. of tool positions (OPT.)	BT#	BT30
Tool	No. of Tools/Automatic Tool Changer T to T	type           sec.	Tapping 2
	No. of Tools/Automatic Tool Changer T to T	type           sec.	12/14                 0.8
Motor	Spindle motor	kw	3.7
	X servo motor	kw	HF 154T/1.5 (ABS)
	Y servo motor	kw	HF 154T/1.5 (ABS)
	Z servo motor	kw	HF154BT/1.5 (ABS)
Miscellaneous	Machine Height	mm (inch)	2,090
	Machine Area (Length) x (Width)	mm (inch)	1,950 x 2,130
	Machine Weight	kg	2,600
	Positioning	mm (inch)	VDI 3441
	Repeatability	mm (inch)	VDI 3441

           Note：Design and specification are subject to change prior notice.
