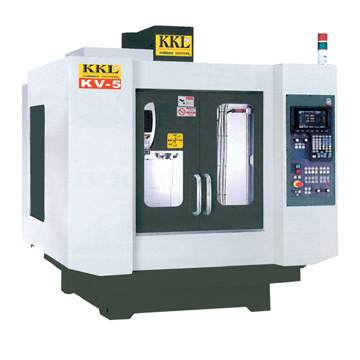

CNC Vertical Machining Center KV-5
dot *Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.

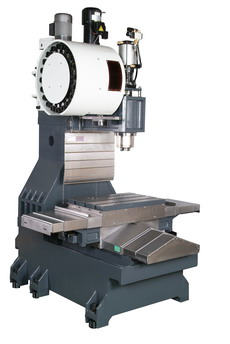

*Inverted-Y Column to extend support distance.






     SPECIFICATIONS

Model
-
Unit
KV-5
Travel
Controller
type
Mitsubishi 70M-2A

X axis
mm (inch)
500

Y axis
mm (inch)
400

Z axis
mm (inch)
450

Spindle nose to table
mm (inch)
170-620

Spindle center to column
mm (inch)
505

Rapid traverse X/Y/Z
m/min
48/48/48
Table
                     Size of T-slot                      (Width x Distance x No.)

mm x mm x no.
                                         18 x 125 x 3

Max loading capacity
kg
250

Size
mm (inch)
620 x 420
Spindle
Taper
type
MAS-BT30

Speed
rpm
Belt 10,000

No. of tool positions (OPT.)
BT#
BT30
Tool
No. of Tools/Automatic Tool Changer
T to T
         type           sec.
20 Rotary Disc
2

No. of Tools/Automatic Tool Changer
T to T
         type           sec.
20/Arm (Opt.)
0.8
Motor
Spindle motor
kw
3.7

X servo motor
kw
HF 154T/1.5 (ABS)

Y servo motor
kw
HF 154T/1.5 (ABS)

Z servo motor
kw
HF204BT/2.0 (ABS)
Miscellaneous
Machine Height
mm (inch)
2,290

Machine Area (Length) x (Width)
mm (inch)
1,950 x 2,130

Machine Weight
kg
2,800

Positioning
mm (inch)
VDI 3441

Repeatability
mm (inch)
VDI 3441
           Note:Design and specification are subject to change prior notice.
                         STANDARD ACCESSORIES                                               OPTIONAL ACCESSORIES
             Heat exchanger                                                                         Heidenhain Controller
             *36W work lamp                                                                       Siemens Controller
             *Full splash guard                                                                      *Fanuc Controller
             *Screw type chip conveyor                                                       Selca Controller
             *3 color light                                                                              Fagor Controller
             *Hiwin linear guides                                                                  Chip Clean & Spray Gun
             *Spindle oil cooler unit                                                              Spindle BT30-12,000/15,000rpm
             *Auto power off                                                                                         BT40-12,000/15,000rpm
             *Air blast device                                                                        4/5th Axis Indexing Table
             *Rigid tapping                                                                           Oil Water Separator
                                                                                                                  Absolute Linear Scale
                                                                                                                  Hiwin linear guides
                                                                                                                  Spindle taper-BT/CAT/DIN/HSK
